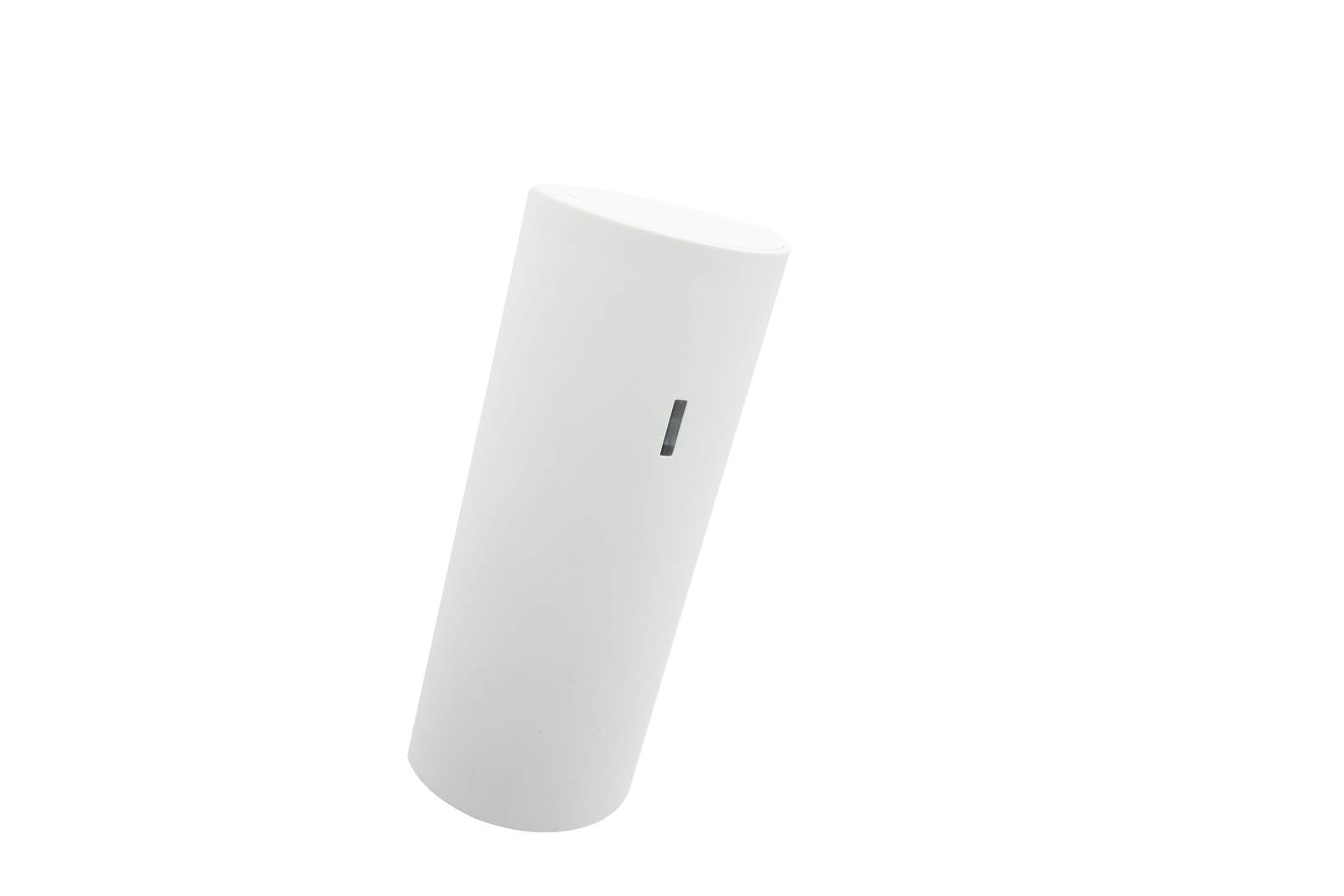

The DSC PGP‑IO9 from DSC is a wireless PowerG+ input/output module that allows integrators to add control of third‑party devices while maintaining encrypted, two‑way PowerG+ communication with the control panel. It features a configurable layout with of 2 inputs & 2 outputs or 4 inputs), user‑selectable zones (NO, NC, EOL, double‑EOL), front and back tamper detection, and signal strength LED indicators for easier installation. With dealer lockdown, supervision messaging, low‑battery reporting, and compatibility with PowerG+‑enabled panels, the PGP‑IO9 is ideal for commercial environments seeking flexible, secure device control expansion.
Features
- Dealer lockdown
- Two Factor Authentication
- Two-way PowerG communication with the control panel
- Front cover and back cover tamper detection
- Periodic supervision message is transmitted automatically to the control panel at regular interval
- Signal strength LED indication during installation
- Discreet transmission of supervision message
- PowerG two-way frequency hopping spread spectrum time-division multiple access (FHSS-TDMA) technology
- Battery reporting
- Low battery indication
- User-selectable operation of auxiliary input as Normally open, Normally closed, End of Line (EOL), or Double EOL
- Temperature sensing and reporting
- Default configuration of two inputs/two outputs. Configuration can be changed to 4 inputs, if needed
