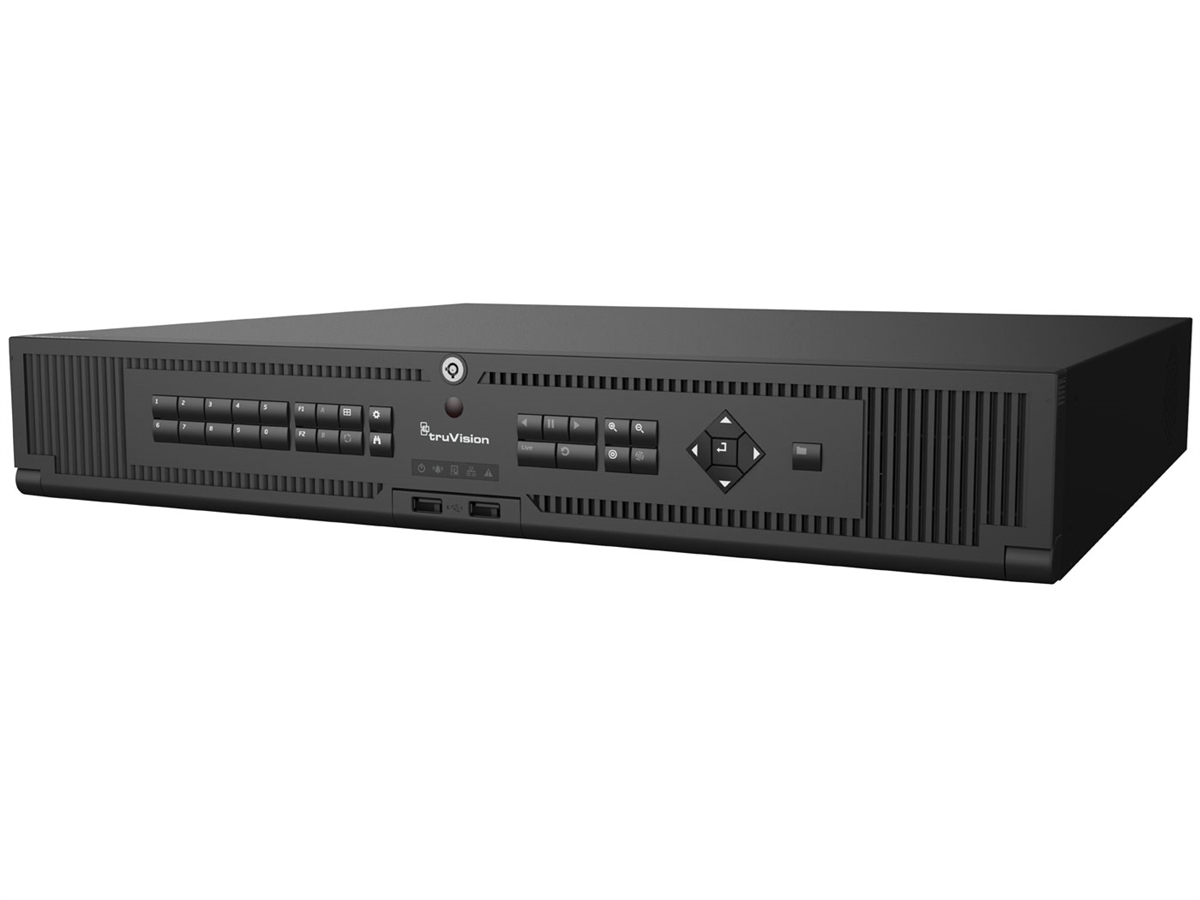

The TVN-2216S-24T is a 16 Channel 24 TB plug-and-play H.264/H.265 network video recorder with 16 built-in PoE ports designed to support video streams from H.265 or H.264 IP cameras and encoders. With a total of 160 Mbps of incoming bandwidth available, the TVN 22S can support up to 16 cameras at HD resolution in real-time (30fps) and many other configurations. The on-board PoE ports support up to 200 watts for ease of installation and flexible bandwidth allocation per channel allows users to maximize recording performance. In addition to browser, software and mobile device management tools, the familiar front panel controls allow for easy operation.
Features:- TruVision IP cameras support from VGA ~ 8MPx
- TruVision single and multi-port encoders
- ONVIF Profile S support for 3rd-party camera integration
- RTSP Stream capability
- H.264/H.265 compression supported
- 16 HD cameras in real-time (30fps)
- 160 Mbps for incoming streams
- Continuous, motion, event or scheduled recording modes
- Audio recording with capable IP cameras
- Watermarking for video authentication
- 24TB of storage with front accessible hard disk storage
- External hard drive (eSATA) support
- Local USB archiving
- Rack mountable — 1.5 RU
- 16-ports embedded PoE Switch
- Intuitive and logical user interface
- ezDDNS
- Triple monitor support — HDMI (1), VGA (1) and analog (1)
- 16 on-board alarm inputs and 4 configurable alarm outputs
- PTZ and dome camera control via mouse, front panel, IR remote or optional keypad
- Compatibility with TruVision Navigator and mobile app software
- Mac Safari browser plug-in
